GeoAdmin API
===================================
Layers Metadata¶
This service provides metadata for all the available layers in the GeoAdmin API.
import requests
from pprint import pprint
api_url = "https://api3.geo.admin.ch/rest/services/api/MapServer"
response = requests.get(api_url)
layers = response.json()
pprint(layers.keys())
print(len(layers["layers"]))
Out:
dict_keys(['mapName', 'description', 'copyrightUnicode', 'layers', 'spatialReference', 'tileInfo', 'initialExtent', 'fullExtent', 'units', 'capabilities'])
780
Search Layer by name¶
search for layer url with text
param = {"searchText": "solar"}
response = requests.get("https://api3.geo.admin.ch/rest/services/api/MapServer?", param)
json = response.json()
name = json["layers"][0]["name"]
full_name = json["layers"][0]["fullName"]
link = json["layers"][0]["attributes"]["urlDetails"]
print(f"Name: {name}, \n Voller Name: {full_name} \n link: {link}")
Out:
Name: Solarenergie: Eignung Fassaden,
Voller Name: Eignung von Hausfassaden für die Nutzung von Sonnenenergie
link: https://www.bfe.admin.ch/solarenergie-eignung-fassaden
Get the egid of building from address
street = 'Stadthausquai'
num = '17'
plz = '8001'
place = 'Zürich'
def feature_id(search_text):
search_url = "https://api3.geo.admin.ch/rest/services/api/SearchServer?searchText=&origins=address&type=locations"
search_value = {
"searchText": search_text,
}
r = requests.get(search_url, params=search_value)
results = r.json()
pprint(results)
search_txt = f"{street} {num} {place} {plz}"
param = {"searchText": search_txt}
response = requests.get("https://api3.geo.admin.ch/rest/services/api/SearchServer?&origins=address&type=locations", param)
json = response.json()
detail = json["results"][0]["attrs"]["detail"]
featureid = json["results"][0]["attrs"]["featureId"]
print(f"{detail} \n {featureid}")
pprint(json)
Out:
stadthausquai 17 8001 zuerich 261 zuerich ch zh
140877_0
{'results': [{'attrs': {'detail': 'stadthausquai 17 8001 zuerich 261 zuerich '
'ch zh',
'featureId': '140877_0',
'geom_quadindex': '030003300013231013332',
'geom_st_box2d': 'BOX(683305.2009999999 '
'247082.66899999787,683305.2009999999 '
'247082.66899999787)',
'label': 'Stadthausquai 17 <b>8001 Zürich</b>',
'lat': 47.369319915771484,
'lon': 8.541560173034668,
'num': 17,
'objectclass': '',
'origin': 'address',
'rank': 7,
'x': 247082.671875,
'y': 683305.1875,
'zoomlevel': 10},
'id': 2116031,
'weight': 4}]}
Height from coordinates¶
url = "https://api3.geo.admin.ch/rest/services/height"
params = {
"easting": 2600000,
"northing": 1200000
}
response = requests.get(url, params)
json = response.json()
print(json)
Out:
{'height': '553.6'}
gebaeude_wohnungs_register¶
url = f"https://api3.geo.admin.ch/rest/services/ech/MapServer/ch.bfs.gebaeude_wohnungs_register/{featureid}"
response = requests.get(url)
json = response.json()
atr = json["feature"]["attributes"]
dkode = atr["dkode"]
dkodn = atr["dkodn"]
print(f"{dkode = }")
print(f"{dkodn = }")
pprint(json)
Out:
dkode = 2683305.201
dkodn = 1247082.669
{'feature': {'attributes': {'deinr': '17',
'dexpdat': '09.03.2023',
'dkode': 2683305.201,
'dkodn': 1247082.669,
'doffadr': 1,
'dplz4': 8001,
'dplzname': 'Zürich',
'dplzz': 0,
'edid': '0',
'egaid': 100118254,
'egid': '140877',
'egrid': 'CH327787999175',
'esid': 10075941,
'ewid': None,
'gabbj': None,
'ganzwhg': None,
'garea': 2272,
'gastw': 9,
'gazzi': None,
'gbauj': 1885,
'gbaum': 1,
'gbaup': 8011,
'gbez': 'Stadthaus',
'gdekt': 'ZH',
'gebf': 20448,
'gebnr': '1841',
'genh1': 7580,
'genh2': None,
'genw1': 7520,
'genw2': None,
'gexpdat': '09.03.2023',
'ggdename': 'Zürich',
'ggdenr': 261,
'gkat': 1060,
'gklas': 1220,
'gkode': 2683280.065,
'gkodn': 1247074.234,
'gksce': 905,
'gschutzr': 0,
'gstat': 1004,
'gvol': 62815,
'gvolnorm': 962,
'gvolsce': 859,
'gwaerdath1': '03.01.2018',
'gwaerdath2': '-',
'gwaerdatw1': '03.01.2018',
'gwaerdatw2': '-',
'gwaersceh1': 859,
'gwaersceh2': None,
'gwaerscew1': 859,
'gwaerscew2': None,
'gwaerzh1': 7460,
'gwaerzh2': None,
'gwaerzw1': 7630,
'gwaerzw2': None,
'label': 'Stadthausquai 17',
'lgbkr': 281,
'lparz': 'AA5731',
'lparzsx': None,
'ltyp': None,
'plz_plz6': '8001/800100',
'strindx': ['Sta'],
'strname': ['Stadthausquai'],
'strname_deinr': 'Stadthausquai 17',
'strnamk': ['Stadthausquai'],
'stroffiziel': '1',
'strsp': ['DE'],
'wabbj': None,
'warea': None,
'wazim': None,
'wbauj': None,
'wbez': None,
'weinr': None,
'wexpdat': None,
'whgnr': None,
'wkche': None,
'wmehrg': None,
'wstat': None,
'wstwk': None},
'bbox': [683305.2, 247082.7, 683305.2, 247082.7],
'featureId': '140877_0',
'geometry': {'spatialReference': {'wkid': 21781},
'x': 683305.2,
'y': 247082.7},
'id': '140877_0',
'layerBodId': 'ch.bfs.gebaeude_wohnungs_register',
'layerName': 'GWR: Gebäudestatus'}}
Solardach energie¶
solarenergie-eignung-daecher
Solardach energie¶
cordiantes = str(dkode) + "," + str(dkodn)
print(cordiantes)
link = "https://api3.geo.admin.ch/rest/services/all/MapServer/identify"
query = {
"geometry": cordiantes,
"geometryFormat": "geojson",
"geometryType": "esriGeometryPoint",
"imageDisplay": "1410,620,96",
"lang": "de",
"layers": "all:ch.bfe.solarenergie-eignung-daecher",
"limit": "10",
"mapExtent": "2683322.444874717,1250605.7978890815,2683674.944874717,1250760.7978890815",
"returnGeometry": "true",
"sr": "2056",
"tolerance": "10"
}
response = requests.get(link, query)
pv_json = response.json()
print(f'How many: {len(pv_json["results"])}')
pprint(pv_json['results'][0]["properties"])
Out:
2683305.201,1247082.669
How many: 2
{'a_param': [0.0151209214,
-0.0149136051,
0.0090321821,
0.0128238572,
0.0143819344,
0.1305514852,
0.3877787688,
0.4522255903,
0.3557589657,
0.0686995703,
0.0012518123],
'ausrichtung': -177,
'b_param': [0.587679668,
0.6614977069,
0.5502412637,
0.5296633994,
0.4258052525,
0.3613144388,
0.6170816083,
0.6298137043,
0.6224022149,
0.5333113988,
0.5310760443],
'bedarf_heizung': 1237661,
'bedarf_warmwasser': 81792,
'building_id': 1992633,
'c_param': [0.8526575886,
0.1911423204,
1.5201611332,
2.240268033,
6.800010165,
16.2462724583,
-3.0958350372,
-4.0721419788,
-4.675420533,
3.593378144,
2.8761759857],
'datum_aenderung': '2021-11-29T05:43:37',
'datum_erstellung': '2021-11-29T05:43:37',
'df_nummer': 105,
'dg_heizung': 1,
'dg_waermebedarf': 2,
'duschgaenge': 65,
'finanzertrag': 798.2,
'flaeche': 113.1225298534,
'flaeche_kollektoren': 113.1225298534,
'gs_serie_start': '2023-02-01T00:00:00',
'gstrahlung': 49887,
'heizgradtage': [505.0,
560.0,
419.0,
210.0,
35.0,
1.0,
0.0,
4.0,
112.0,
208.0,
418.0],
'klasse': 1,
'klasse_text': 'Gering##Faible##Bassa##Low##Gering',
'label': 17528405,
'monate': [2, 1, 11, 10, 9, 8, 7, 6, 5, 4, 3],
'monats_ertrag': [2.0825521966,
1.2446001289,
1.6613542419,
2.5895618331,
3.3593888391,
6.2676545785,
12.8516502259,
12.7525206066,
10.385519355,
5.2352661939,
3.3793176502],
'mstrahlung': 441,
'neigung': 54,
'sb_datum_aenderung': '2018-06-08T12:28:45',
'sb_datum_erstellung': '2018-06-08T12:22:39',
'sb_objektart': 1,
'stromertrag': 7982,
'volumen_speicher': 7400,
'waermeertrag': 27449}
from IPython.display import display, HTML, IFrame
feature_ids=[]
for i in pv_json["results"]:
feature_ids.append(i["featureId"])
print(feature_ids)
Out:
[17528405, 17528404]
import matplotlib.pyplot as plt
klasse = pv_json["results"][0]["properties"]['klasse_text']
finanzertrag = pv_json["results"][0]["properties"]["finanzertrag"]
mstrahlung = pv_json["results"][0]["properties"]["mstrahlung"]
neigung = pv_json["results"][0]["properties"]["neigung"]
fig, ax = plt.subplots()
x = pv_json["results"][0]["properties"]["monate"]
y = pv_json["results"][0]["properties"]["monats_ertrag"]
ax.bar(x, y, )
ax.set_ylabel('fruit supply')
ax.set_title('Fruit supply by kind and color')
print(f"{finanzertrag = }")
print(f"{mstrahlung = }")
print(f"{neigung = }")
print(f"{klasse = }")
plt.show()
Out:
finanzertrag = 798.2
mstrahlung = 441
neigung = 54
klasse = 'Gering##Faible##Bassa##Low##Gering'

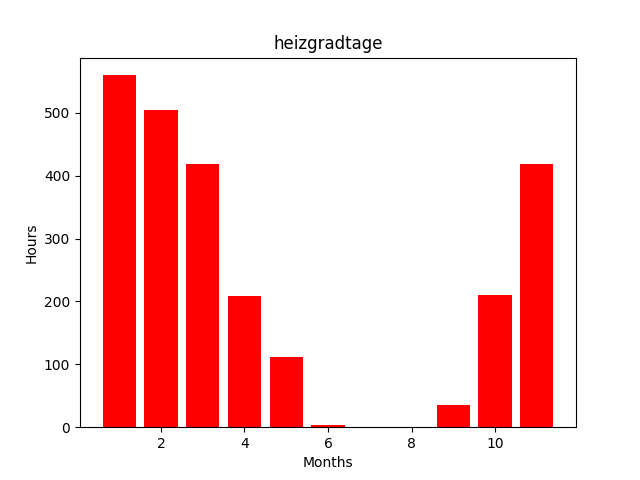

Heizgradtage¶
Heizgradtage werden verwendet, um den jährlichen Heizwärmebedarf auf die Kalendermonate zu verteilen. Die Heizgradtage für einen Monat berechnen sich aus der Differenz zwischen der Raumtemperatur (20°C) und der Tagesmitteltemperatur an Tagen mit einer Tagesmitteltemperatur tiefer als die Heizgrenze (< 12°C).
fig, ax = plt.subplots()
x = pv_json["results"][0]["properties"]["monate"]
y = pv_json["results"][0]["properties"]["heizgradtage"]
ax.bar(x, y, color="red")
ax.set_ylabel('Hours')
ax.set_xlabel('Months')
ax.set_title('heizgradtage')
plt.show()
print(y)
Out:
[505.0, 560.0, 419.0, 210.0, 35.0, 1.0, 0.0, 4.0, 112.0, 208.0, 418.0]
Total running time of the script: ( 0 minutes 1.382 seconds)
Download Python source code: plott_4_GeoAdmin.py
