PVWatts¶

from pvlib import pvsystem
import pandas as pd
import matplotlib.pyplot as plt

# Example module parameters for the Canadian Solar CS5P-220M:
parameters = {
    "Name": "Canadian Solar CS5P-220M",
    "BIPV": "N",
    "Date": "10/5/2009",
    "T_NOCT": 42.4,
    "A_c": 1.7,
    "N_s": 96,
    "I_sc_ref": 5.1,
    "V_oc_ref": 59.4,
    "I_mp_ref": 4.69,
    "V_mp_ref": 46.9,
    "alpha_sc": 0.004539,
    "beta_oc": -0.22216,
    "a_ref": 2.6373,
    "I_L_ref": 5.114,
    "I_o_ref": 8.196e-10,
    "R_s": 1.065,
    "R_sh_ref": 381.68,
    "Adjust": 8.7,
    "gamma_r": -0.476,
    "Version": "MM106",
    "PTC": 200.1,
    "Technology": "Mono-c-Si",
}

cases = [(1000, 55), (800, 55), (600, 55), (400, 25), (400, 40), (400, 55)]

conditions = pd.DataFrame(cases, columns=["Geff", "Tcell"])

# adjust the reference parameters according to the operating
# conditions using the De Soto model:
IL, I0, Rs, Rsh, nNsVth = pvsystem.calcparams_desoto(
    conditions["Geff"],
    conditions["Tcell"],
    alpha_sc=parameters["alpha_sc"],
    a_ref=parameters["a_ref"],
    I_L_ref=parameters["I_L_ref"],
    I_o_ref=parameters["I_o_ref"],
    R_sh_ref=parameters["R_sh_ref"],
    R_s=parameters["R_s"],
    EgRef=1.121,
    dEgdT=-0.0002677,
)

# plug the parameters into the SDE and solve for IV curves:
curve_info = pvsystem.singlediode(
    photocurrent=IL,
    saturation_current=I0,
    resistance_series=Rs,
    resistance_shunt=Rsh,
    nNsVth=nNsVth,
    ivcurve_pnts=100,
    method="lambertw",
)

# plot the calculated curves:

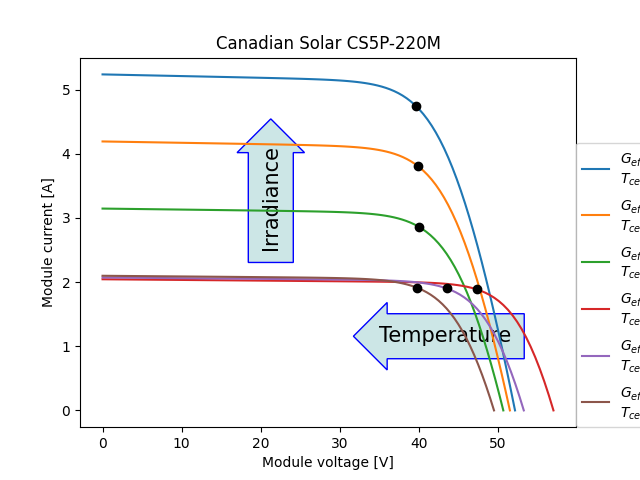

plt.figure()
for i, case in conditions.iterrows():
    label = (
        "$G_{eff}$ " + f"{case['Geff']} $W/m^2$\n"
        "$T_{cell}$ " + f"{case['Tcell']} $\\degree C$"
    )
    plt.plot(curve_info["v"][i], curve_info["i"][i], label=label)
    v_mp = curve_info["v_mp"][i]
    i_mp = curve_info["i_mp"][i]
    # mark the MPP
    plt.plot([v_mp], [i_mp], ls="", marker="o", c="k")

plt.legend(loc=(1.0, 0))
plt.xlabel("Module voltage [V]")
plt.ylabel("Module current [A]")
plt.title(parameters["Name"])

plt.gcf().set_tight_layout(True)
plt.gcf().set_tight_layout(False)


# draw trend arrows
def draw_arrow(ax, label, x0, y0, rotation, size, direction):
    style = direction + "arrow"
    bbox_props = dict(boxstyle=style, fc=(0.8, 0.9, 0.9), ec="b", lw=1)
    t = ax.text(
        x0,
        y0,
        label,
        ha="left",
        va="bottom",
        rotation=rotation,
        size=size,
        bbox=bbox_props,
        zorder=-1,
    )

    bb = t.get_bbox_patch()
    bb.set_boxstyle(style, pad=0.6)


ax = plt.gca()
draw_arrow(ax, "Irradiance", 20, 2.5, 90, 15, "r")
draw_arrow(ax, "Temperature", 35, 1, 0, 15, "l")

plt.show()

print(
    pd.DataFrame(
        {
            "i_sc": curve_info["i_sc"],
            "v_oc": curve_info["v_oc"],
            "i_mp": curve_info["i_mp"],
            "v_mp": curve_info["v_mp"],
            "p_mp": curve_info["p_mp"],
        }
    )
)

from pvlib import solarposition
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

tz = "europe/Zurich"
lat, lon = 47.47970, 8.53580
times = pd.date_range("2013-01-01", "2021-01-01", freq="H", tz=tz)

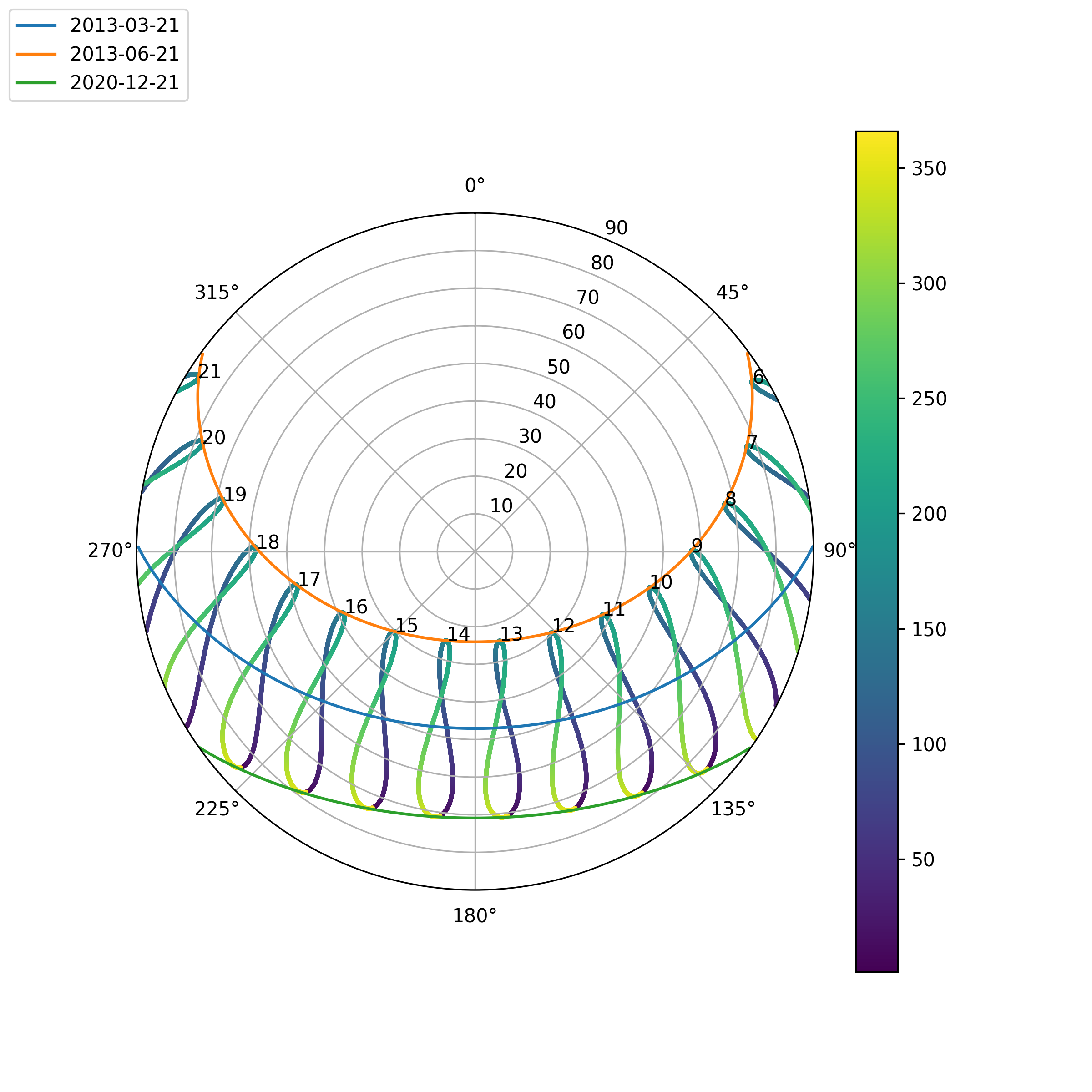

plt.figure(dpi=300,figsize=(8, 8))

solpos = solarposition.get_solarposition(times, lat, lon)

# remove nighttime
solpos = solpos.loc[solpos["apparent_elevation"] > 0, :]

ax = plt.subplot(1, 1, 1, projection="polar")
# draw the analemma loops
points = ax.scatter(
    np.radians(solpos.azimuth),
    solpos.apparent_zenith,
    s=2,
    label=None,
    c=solpos.index.dayofyear,
)
ax.figure.colorbar(points)


# draw hour labels
for hour in np.unique(solpos.index.hour):
    # choose label position by the smallest radius for each hour
    subset = solpos.loc[solpos.index.hour == hour, :]
    r = subset.apparent_zenith
    pos = solpos.loc[r.idxmin(), :]
    ax.text(np.radians(pos["azimuth"]), pos["apparent_zenith"], str(hour))

# draw individual days
for date in pd.to_datetime(["2013-03-21", "2013-06-21", "2020-12-21"]):
    times = pd.date_range(date, date + pd.Timedelta("24h"), freq="5min", tz=tz)
    solpos = solarposition.get_solarposition(times, lat, lon)
    solpos = solpos.loc[solpos["apparent_elevation"] > 0, :]
    label = date.strftime("%Y-%m-%d")
    ax.plot(np.radians(solpos.azimuth), solpos.apparent_zenith, label=label)

ax.figure.legend(loc="upper left")

# change coordinates to be like a compass
ax.set_theta_zero_location("N")
ax.set_theta_direction(-1)
ax.set_rmax(90)

plt.show()

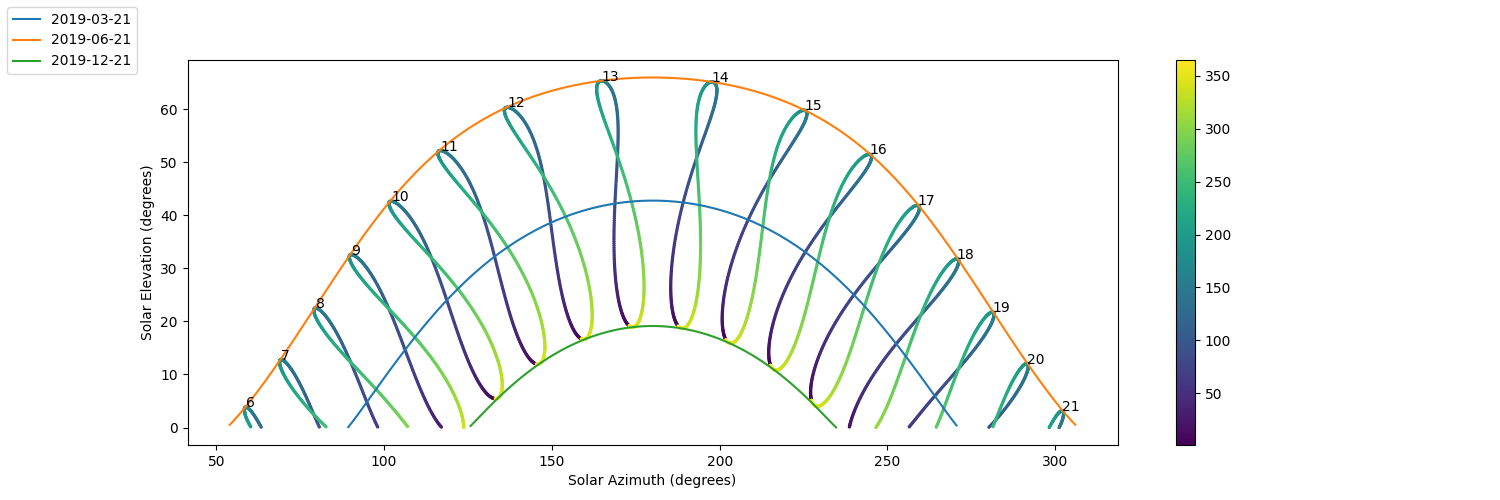

times = pd.date_range(
    "2019-01-01 00:00:00", "2020-01-01", inclusive="left", freq="H", tz=tz
)
plt.rcParams["figure.figsize"] = (15,5)

solpos = solarposition.get_solarposition(times, lat, lon)
# remove nighttime
solpos = solpos.loc[solpos["apparent_elevation"] > 0, :]

fig, ax = plt.subplots()
points = ax.scatter(
    solpos.azimuth, solpos.apparent_elevation, s=2, c=solpos.index.dayofyear, label=None
)
fig.colorbar(points)


for hour in np.unique(solpos.index.hour):
    # choose label position by the largest elevation for each hour
    subset = solpos.loc[solpos.index.hour == hour, :]
    height = subset.apparent_elevation
    pos = solpos.loc[height.idxmax(), :]
    ax.text(pos["azimuth"], pos["apparent_elevation"], str(hour))

for date in pd.to_datetime(["2019-03-21", "2019-06-21", "2019-12-21"]):
    times = pd.date_range(date, date + pd.Timedelta("24h"), freq="5min", tz=tz)
    solpos = solarposition.get_solarposition(times, lat, lon)
    solpos = solpos.loc[solpos["apparent_elevation"] > 0, :]
    label = date.strftime("%Y-%m-%d")
    ax.plot(
        solpos.azimuth,
        solpos.apparent_elevation,
        label=label,
    )

ax.figure.legend(loc="upper left")
ax.set_xlabel("Solar Azimuth (degrees)")
ax.set_ylabel("Solar Elevation (degrees)")

plt.show()

import pvlib
import pandas as pd  # for data wrangling
import matplotlib.pyplot as plt  # for visualization
import pathlib  # for finding the example dataset
print(pvlib.__version__)

class Photovoltaik:
    def __init__(self, path, year) -> None:
        self.path = path
        df_tmy, meta = pvlib.iotools.read_epw(path, year)
        location = pvlib.location.Location(
            latitude=meta["latitude"], longitude=meta["longitude"]
        )

path = "Zurich-Kloten_2013.epw"
import numpy as np


df_tmy, meta = pvlib.iotools.read_epw(path)



location = pvlib.location.Location(
    latitude=meta["latitude"], longitude=meta["longitude"]
)

times = df_tmy.index
solar_position = location.get_solarposition(times)

tilt = 30
azimuth = 180

df_poa = pvlib.irradiance.get_total_irradiance(
    surface_tilt=tilt,
    surface_azimuth=azimuth,
    dni=df_tmy["dni"],
    ghi=df_tmy["ghi"],
    dhi=df_tmy["dhi"],
    solar_zenith=solar_position["apparent_zenith"],
    solar_azimuth=solar_position["azimuth"],
)

poa = df_poa["poa_global"]
poa_sky = df_poa["poa_sky_diffuse"]

parameters = pvlib.temperature.TEMPERATURE_MODEL_PARAMETERS["sapm"]["open_rack_glass_polymer"]

cell_temperature = pvlib.temperature.sapm_cell(
    poa, df_tmy["temp_air"], df_tmy["wind_speed"], **parameters)

# power
gamma_pdc = -0.004  # divide by 100 to go from %/°C to 1/°C
nameplate = 10000

array_power = pvlib.pvsystem.pvwatts_dc(poa, cell_temperature, nameplate, gamma_pdc)
loses = 1 - pvlib.pvsystem.pvwatts_losses() / 100
dc = loses*array_power


"""
soiling: numeric, default 2
shading: numeric, default 3
snow: numeric, default 0
mismatch: numeric, default 2
wiring: numeric, default 2
connections: numeric, default 0.5
lid: numeric, default 1.5
Light induced degradation
nameplate_rating: numeric, default 1
age: numeric, default 0
availability: numeric, default 3
"""

# 0.86 × 0.96 = 0.825
pdc0 = nameplate / 0.96  # W
ac = pvlib.inverter.pvwatts(dc, pdc0)

df_plot = pd.DataFrame(
    {
        "Sun power on Modul": poa,
        "Panel (DC)": dc,
        "Inverter (AC)": ac,
    }
)

print(len(df_tmy))
df_plot.sum() /1000

loses

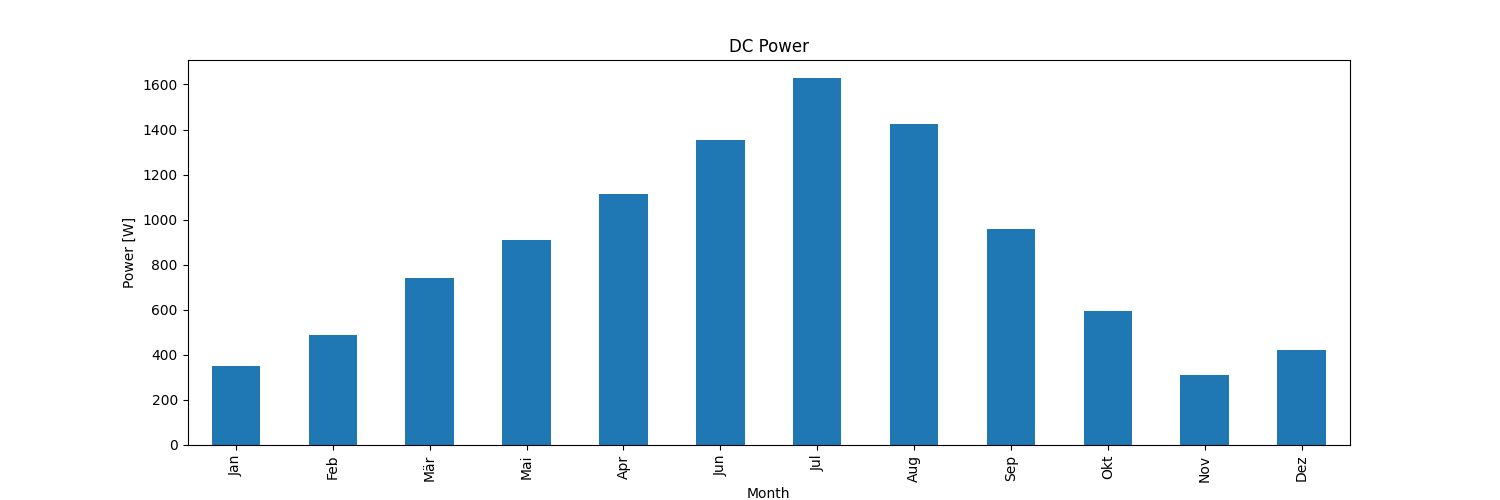

ar = dc.resample("M").sum() /1000
ar.plot.bar()
plt.xticks(np.arange(12), ['Jan', 'Feb', 'Mär', 'Mai', 'Apr', 'Jun', 'Jul', 'Aug', 'Sep', 'Okt', 'Nov', 'Dez'])
plt.ylabel("Power [W]")
plt.xlabel("Month")
plt.title("DC Power")
poa.resample(rule="M").sum().to_list()[0]/1000
df_poa.sum() / 1000

first_week = df_tmy[4000:4200]  # Plotting 7 days, each one has 24 hours or entries
first_week[['ghi', 'dhi', 'dni']].plot()
plt.ylabel('Irradiance [W/m$^2$]')
plt.title("By Hours")

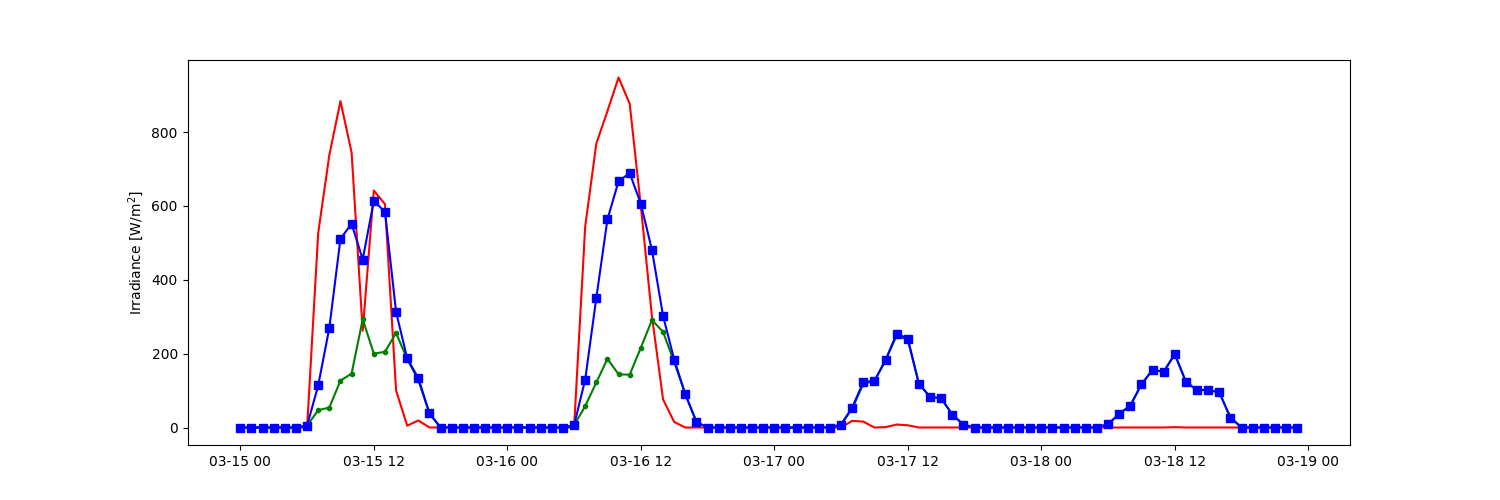

day = df_tmy.loc['2013-03-15':'2013-03-18']
plt.rcParams["figure.figsize"] = (15,5)
plt.plot(day['dni'], color='r', )
plt.plot(day['dhi'], color='g', marker='.')
plt.plot(day['ghi'], color='b', marker='s')
plt.ylabel('Irradiance [W/m$^2$]')
plt.show()

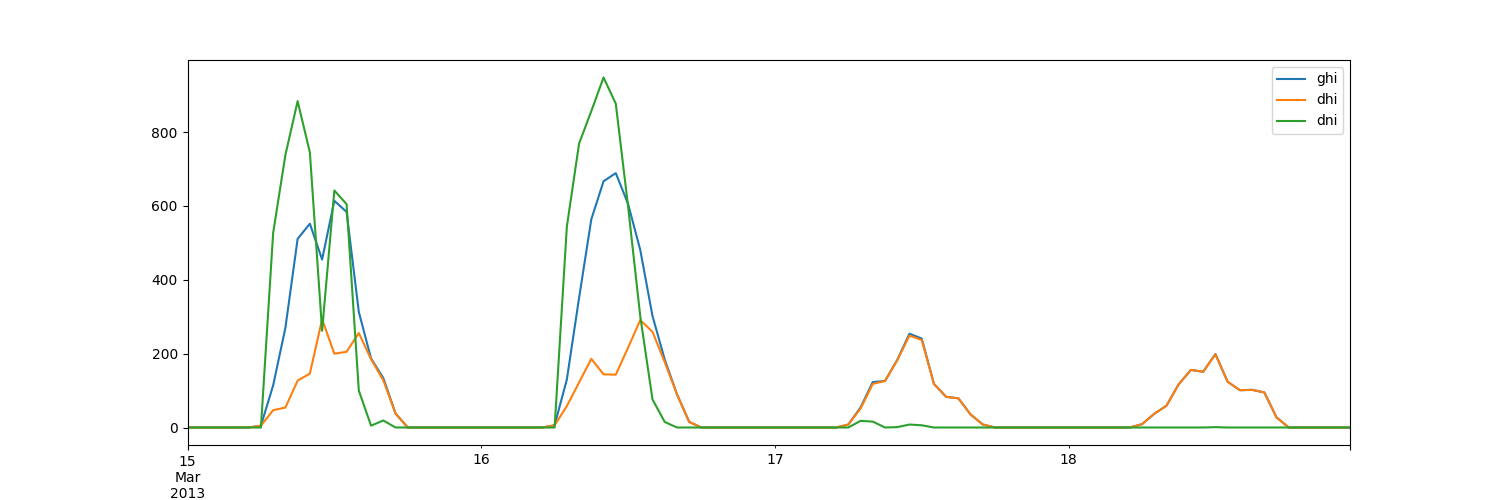

day[['ghi', 'dhi', 'dni']].plot()

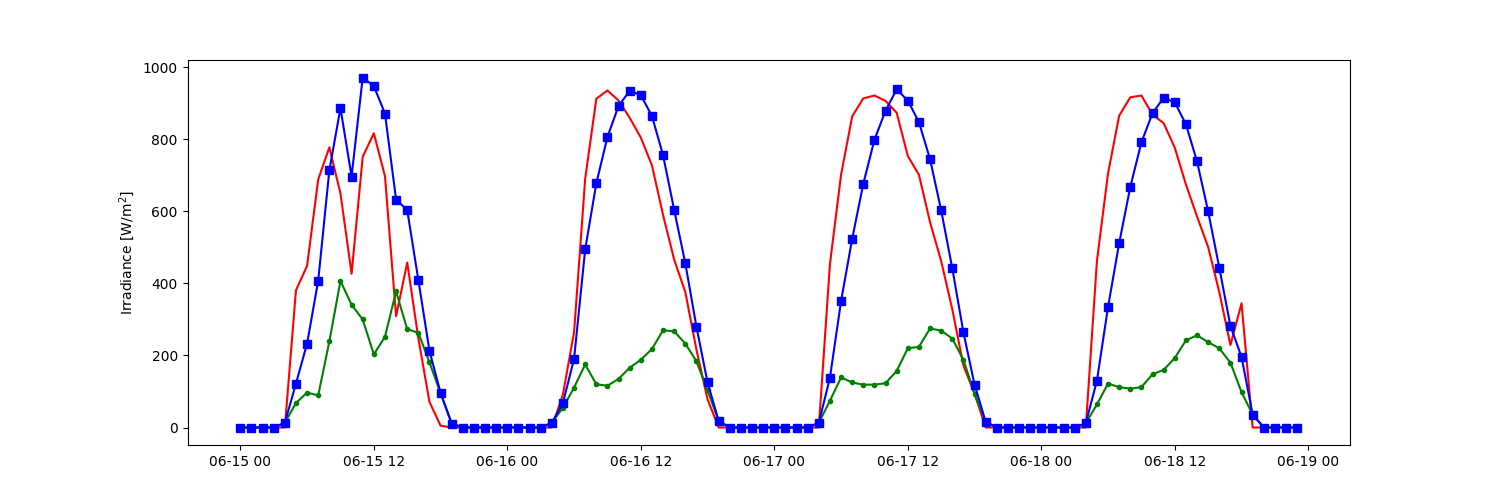

day = df_tmy.loc['2013-06-15':'2013-06-18']
plt.rcParams["figure.figsize"] = (15,5)

plt.plot(day['dni'], color='r', )
plt.plot(day['dhi'], color='g', marker='.')
plt.plot(day['ghi'], color='b', marker='s')
plt.ylabel('Irradiance [W/m$^2$]')
plt.show()

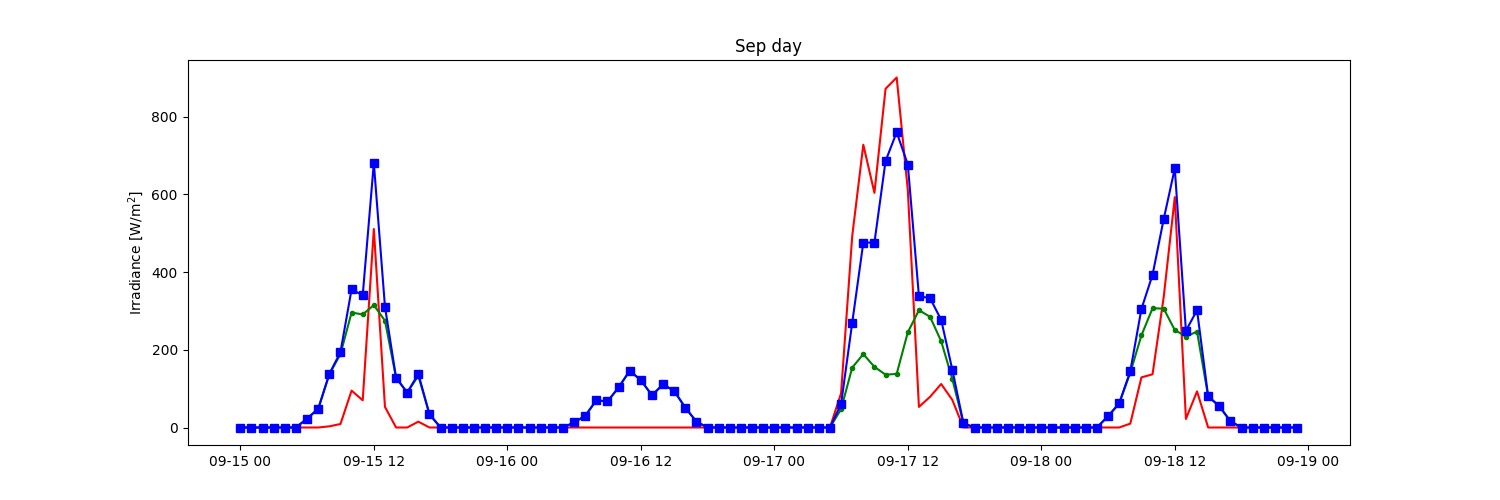

day = df_tmy.loc['2013-09-15':'2013-09-18']
plt.rcParams["figure.figsize"] = (15,5)

plt.plot(day['dni'], color='r', )
plt.plot(day['dhi'], color='g', marker='.')
plt.plot(day['ghi'], color='b', marker='s')
plt.ylabel('Irradiance [W/m$^2$]')
plt.title("Sep day")

plt.show()

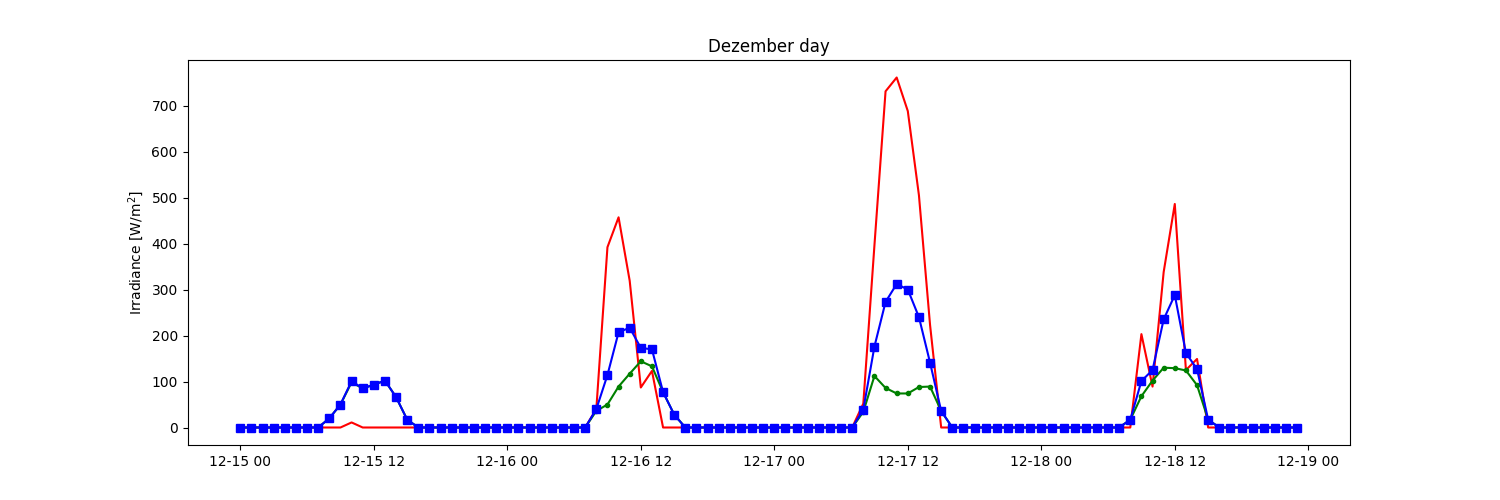

day = df_tmy.loc['2013-12-15':'2013-12-18']
plt.rcParams["figure.figsize"] = (15,5)

plt.plot(day['dni'], color='r', )
plt.plot(day['dhi'], color='g', marker='.')
plt.plot(day['ghi'], color='b', marker='s')
plt.ylabel('Irradiance [W/m$^2$]')
plt.title("Dezember day")
plt.show()

meta["latitude"], meta["longitude"]

print("Sun: kwh/m2", int(poa.sum()/1000))
print("DC: 1/kW", int(dc.sum() / 1000))
print("AC: 1/kW",int(ac.sum() / 1000))

# summing hourly power (W) gives (W h)

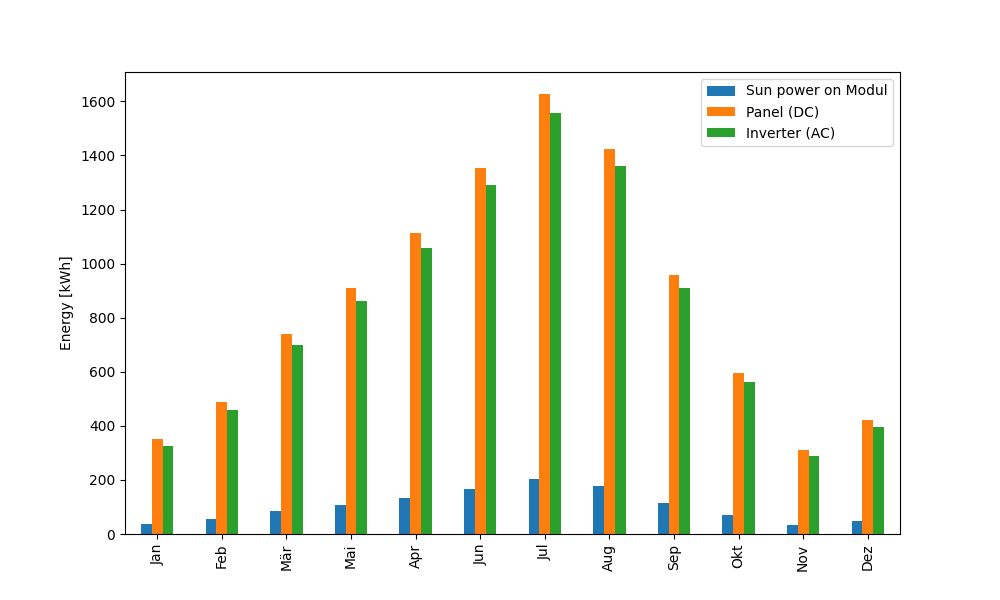

df = df_plot.resample("M").sum()/1000

df.plot.bar(figsize=(10, 6))
plt.xticks(np.arange(12), ['Jan', 'Feb', 'Mär', 'Mai', 'Apr', 'Jun', 'Jul', 'Aug', 'Sep', 'Okt', 'Nov', 'Dez'])
plt.ylabel("Energy [kWh]")

from IPython.core.display import HTML
table = df_plot.resample("M").sum()/1000
HTML(table.to_html())

print("Sun: kwh/m2", int(poa.sum()/1000))
print("DC: 1/kW", int(dc.sum() / 1000))
print("AC: 1/kW",int(ac.sum() / 1000))

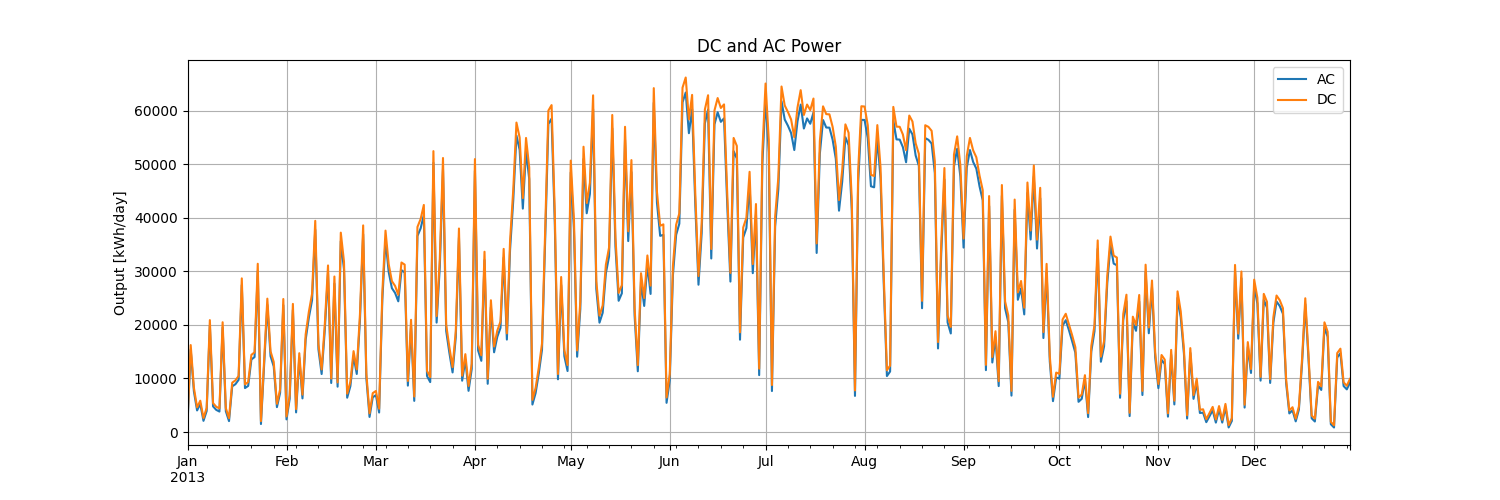

ax = ac.resample("D").sum().plot( label="AC")
dc.resample("D").sum().plot(ax=ax, label="DC")

plt.rcParams["figure.figsize"] = (40,10)

plt.ylabel("Energy [kWh]")

plt.title("DC and AC Power")
plt.ylabel("Output [kWh/day]")
plt.grid()
plt.legend()

plt.show()

plt.rcParams["font.size"] = 14

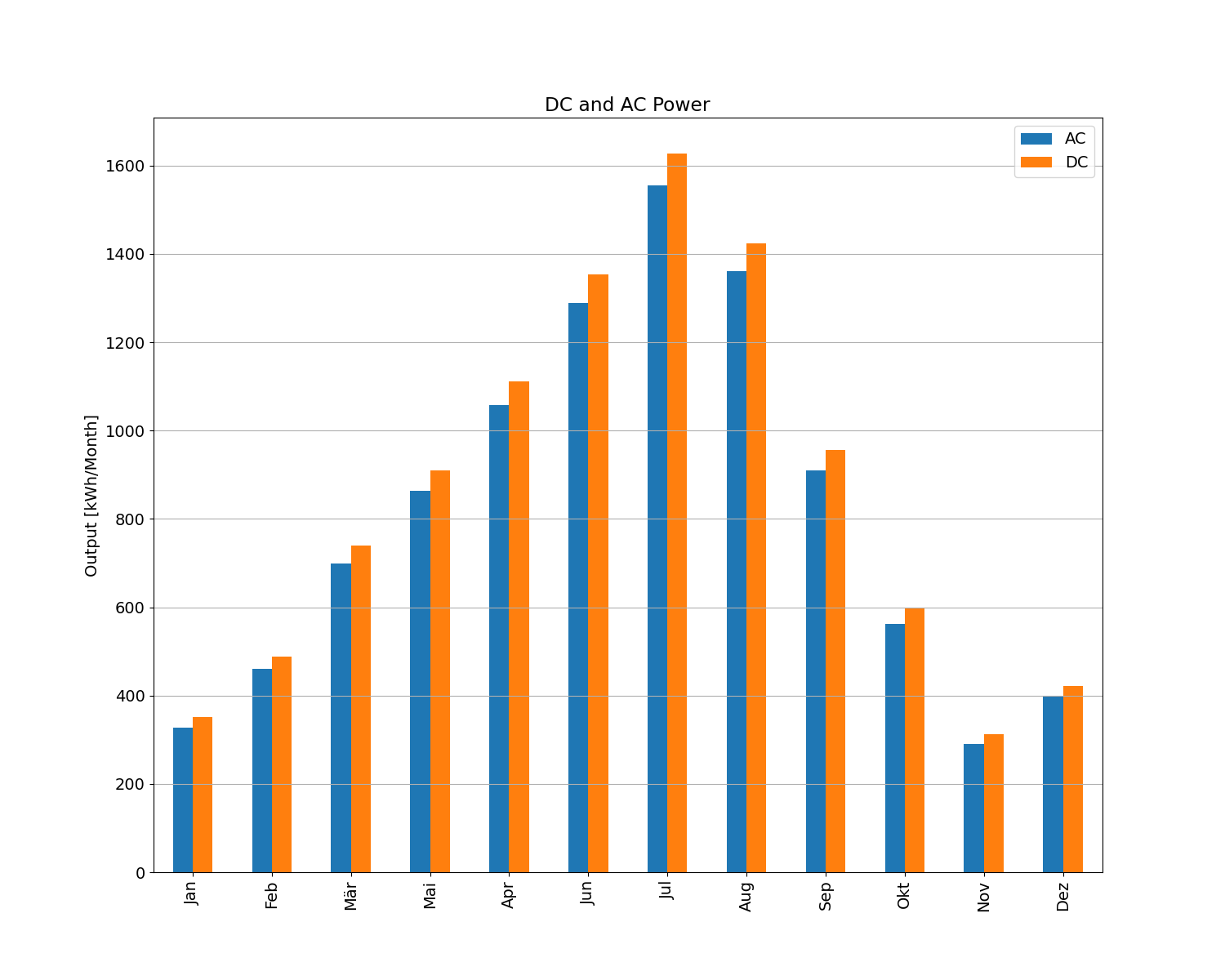

bar = {"AC": ac.resample("M").sum()/1000,
        "DC": dc.resample("M").sum()/1000}


pd.DataFrame(bar).plot.bar(figsize=(15, 12),)


print(df_plot.resample("M").sum()/1000)


plt.xticks(np.arange(12), ['Jan', 'Feb', 'Mär', 'Mai', 'Apr', 'Jun', 'Jul', 'Aug', 'Sep', 'Okt', 'Nov', 'Dez'])
plt.ylabel("Energy [kWh]")


plt.title("DC and AC Power")
plt.ylabel("Output [kWh/Month]")
plt.grid(axis='y')
plt.legend()
plt.show()

plt.rcParams["font.size"] = 14

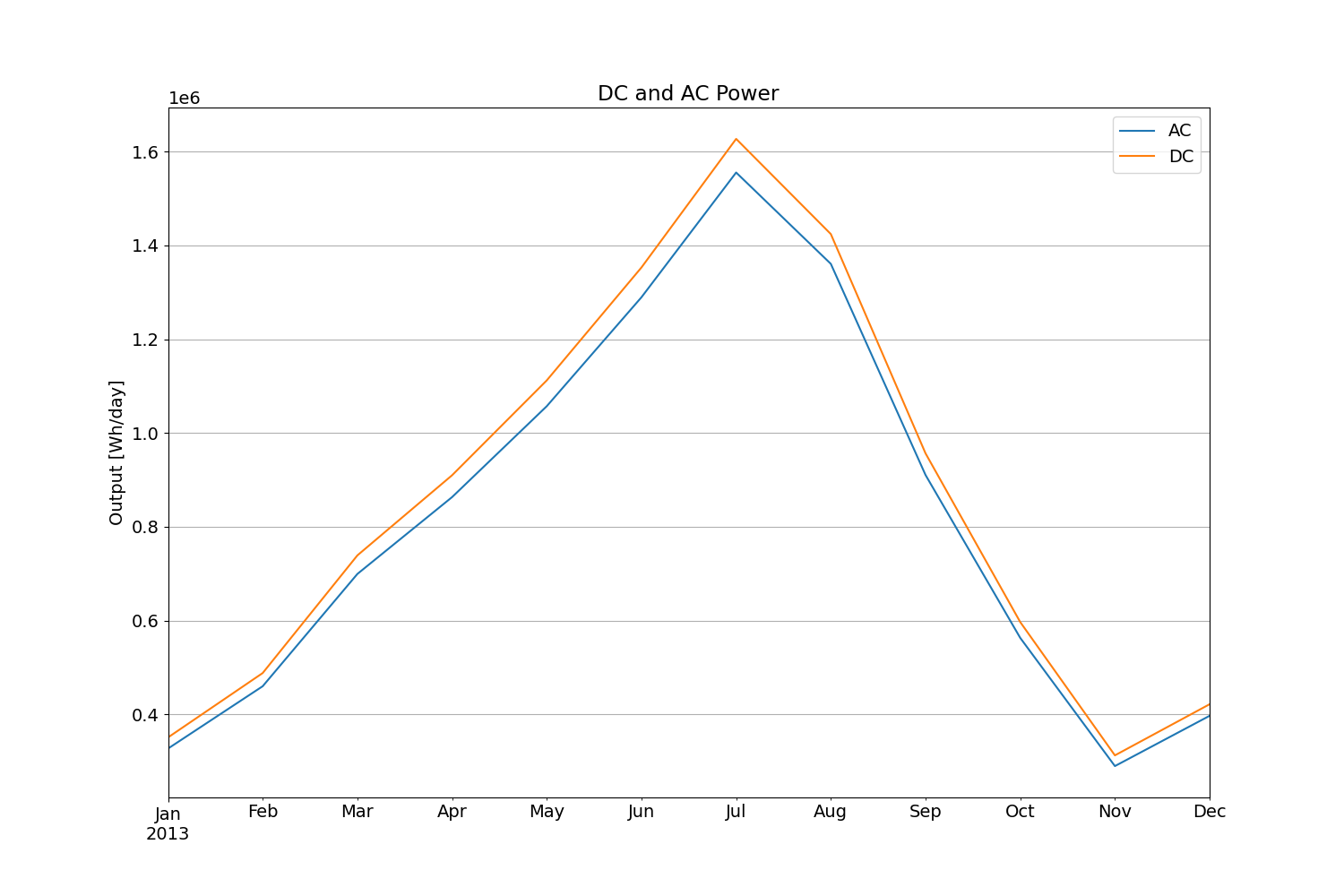

ax = ac.resample("M").sum().plot(figsize=(15, 10), label="AC")
dc.resample("M").sum().plot(ax=ax, label="DC")

plt.title("DC and AC Power")
plt.ylabel("Output [Wh/day]")
plt.grid()
plt.legend()

plt.show()

plt.rcParams["font.size"] = 14

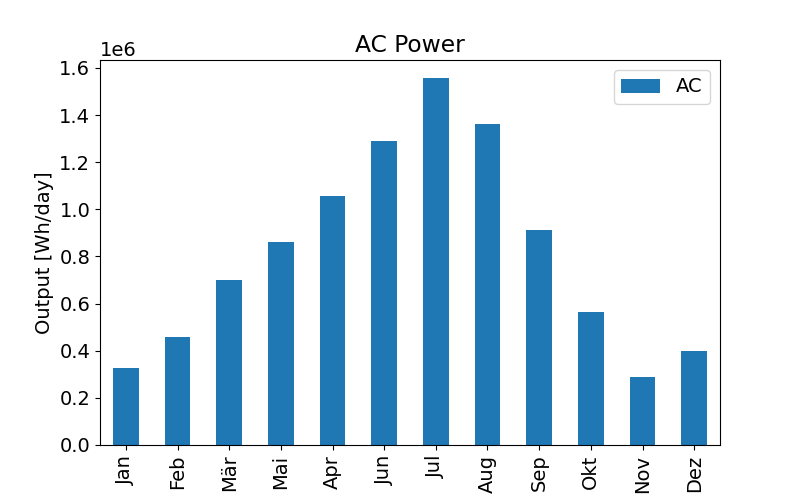

ax = (
    ac.resample("M")
    .sum()
    .plot.bar(
        figsize=(8, 5),
        label="AC",
    )
)

plt.title("AC Power")
plt.ylabel("Output [Wh/day]")
plt.xticks(np.arange(12), ['Jan', 'Feb', 'Mär', 'Mai', 'Apr', 'Jun', 'Jul', 'Aug', 'Sep', 'Okt', 'Nov', 'Dez'])

plt.legend()

plt.rcParams["font.size"] = 14

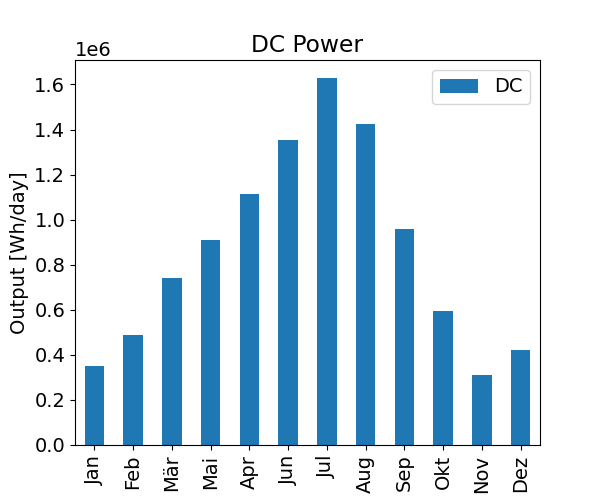

dc.resample("M").sum().plot.bar(label="DC",figsize=(6, 5),)

plt.title("DC Power")
plt.ylabel("Output [Wh/day]")
plt.xticks(np.arange(12), ['Jan', 'Feb', 'Mär', 'Mai', 'Apr', 'Jun', 'Jul', 'Aug', 'Sep', 'Okt', 'Nov', 'Dez'])

plt.legend()

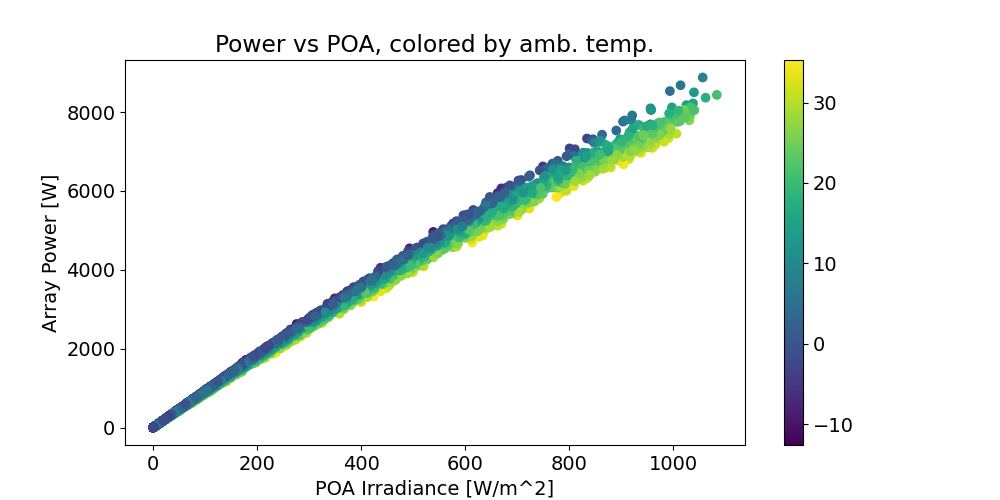

plt.rcParams["figure.figsize"] = (10,5)

plt.scatter(poa, dc, c=df_tmy["temp_air"])
plt.colorbar()
plt.ylabel("Array Power [W]")
plt.xlabel("POA Irradiance [W/m^2]")
plt.title("Power vs POA, colored by amb. temp.")
